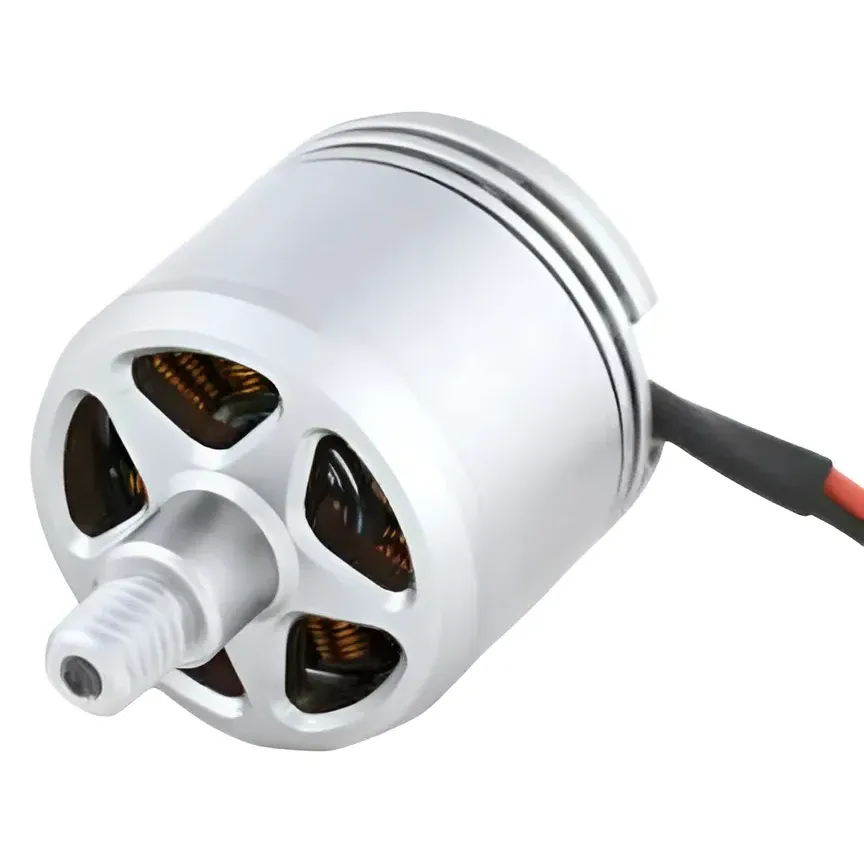

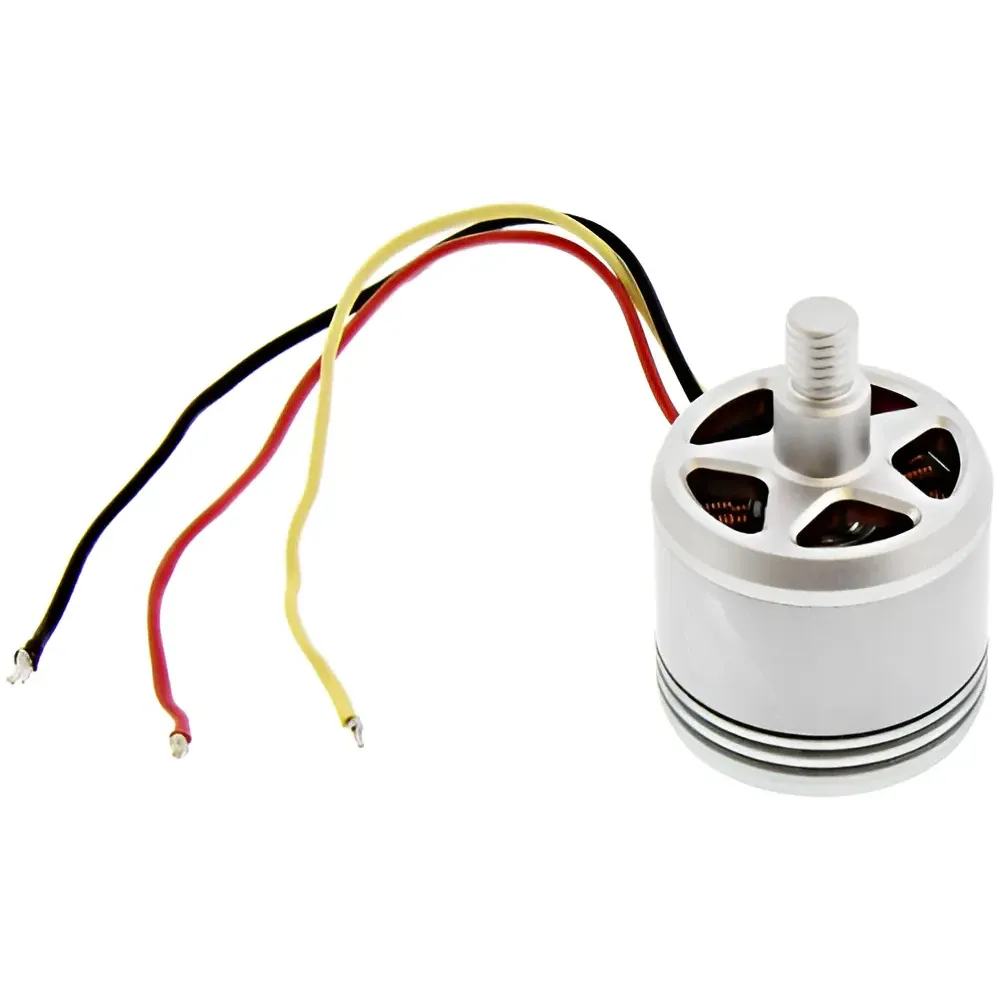

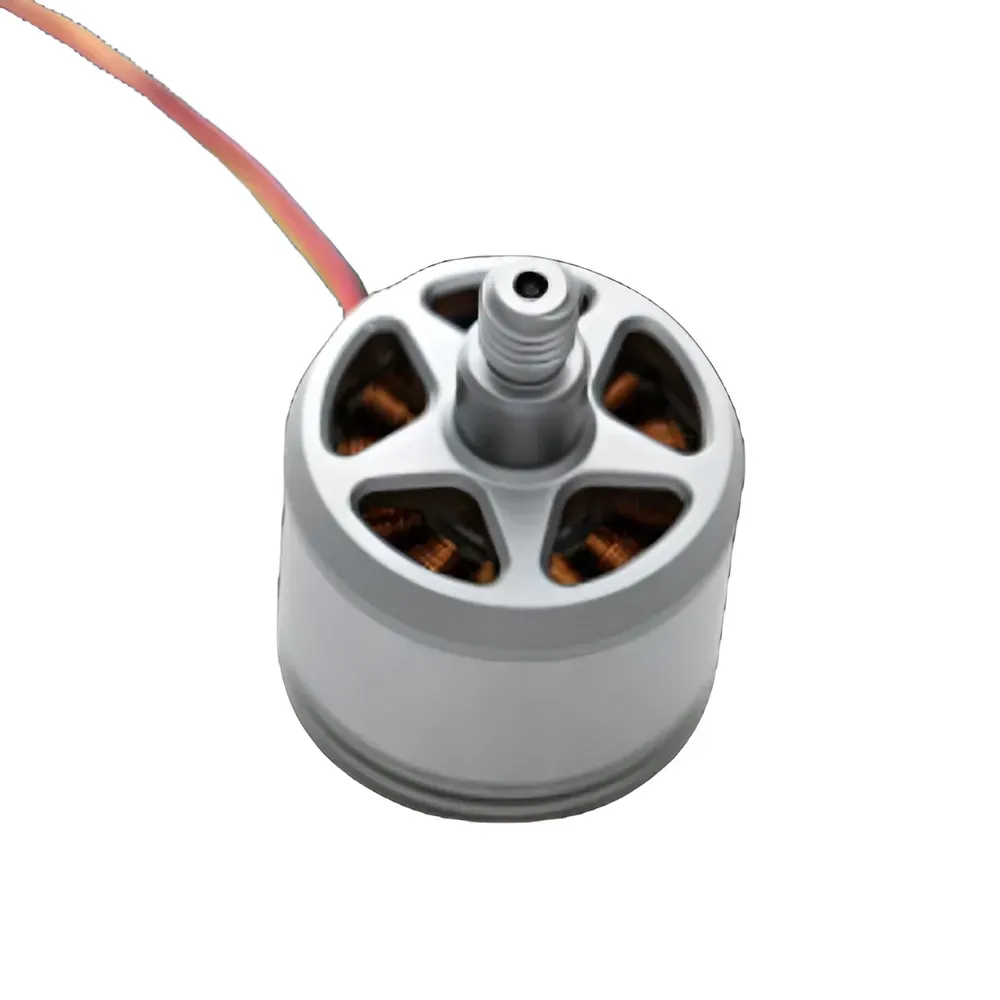

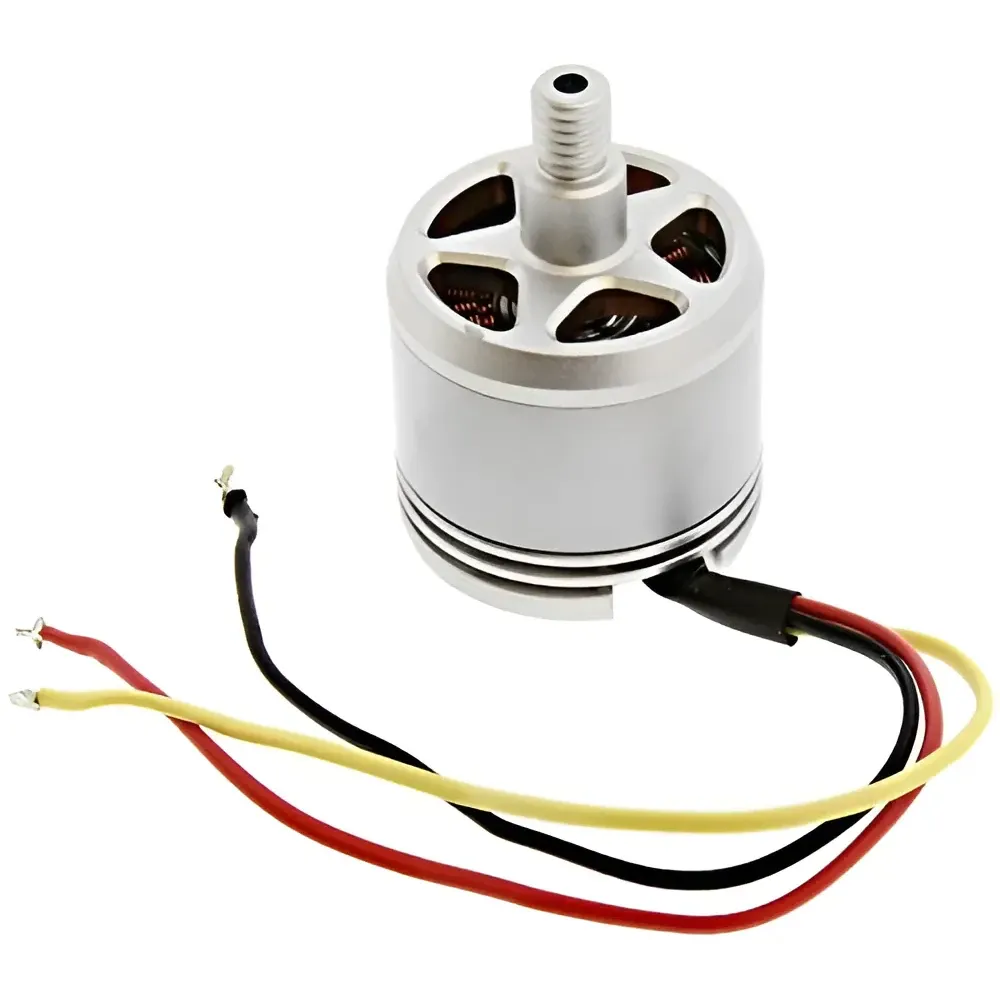

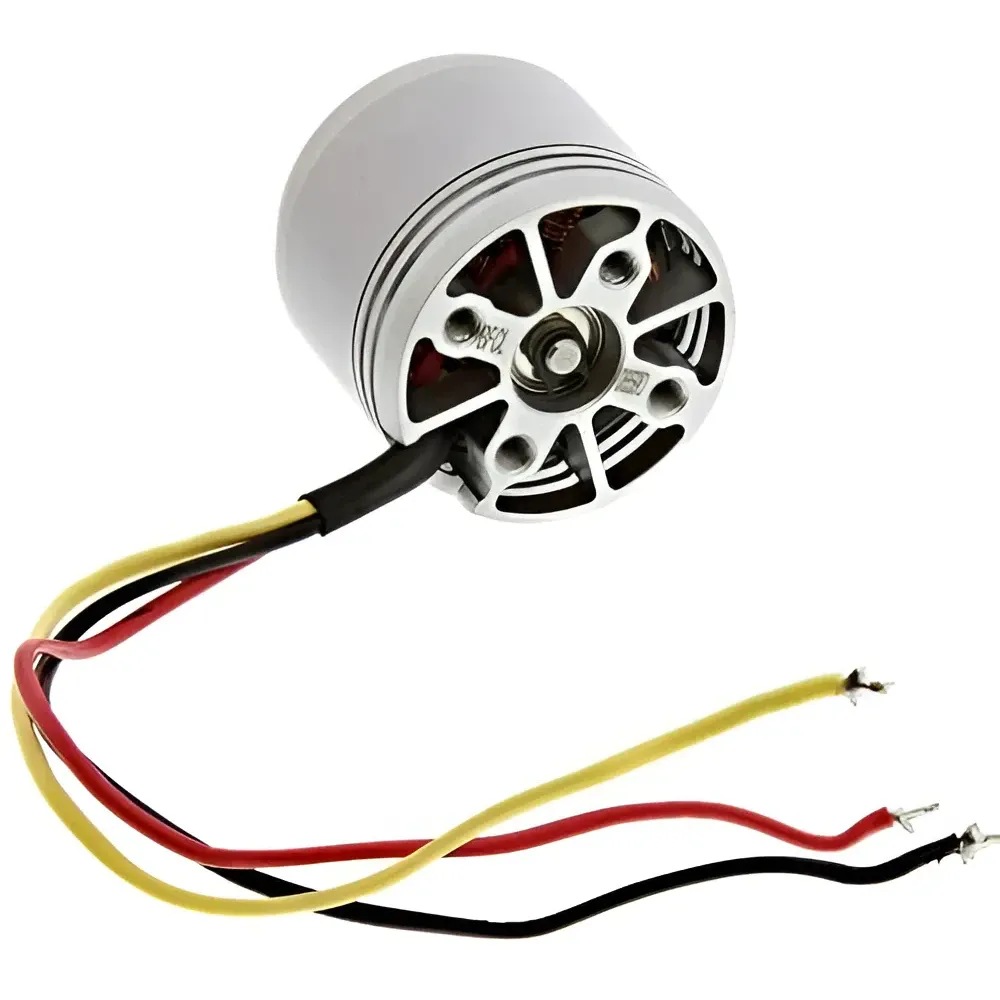

2312A 800KV Brushless Replacement Motor for DJI Phantom 3

A 2312A brushless motor rated at 800KV, made as a direct replacement for the DJI Phantom 3 Standard, Advanced and Professional. Choose the clockwise or counter-clockwise version to match the arm you are repairing — the motor's rotation and the self-tightening prop thread on that arm must agree.

Key features

• Stock size and rating: 2312 stator (23 × 12 mm) at 800KV, the same specification as the Phantom 3's original motors.
• Direct swap: mounts on the Phantom 3 arm in place of a failed, noisy or crash-damaged motor.
• Runs on the stock battery: built for the Phantom 3's 4S (15.2 V) Intelligent Flight Battery.
• Takes the original props: pairs with the Phantom 3's 9450 self-tightening propellers.

Specifications

• Model: 2312A
• Stator: 23 × 12 mm
• KV: 800
• Rotation: CW or CCW (select version)
• Battery: 4S, Phantom 3 flight battery
• Propellers: 9450 self-tightening
• Compatible with: DJI Phantom 3 Standard, Advanced, Professional

Check the rotation marked on the motor you are replacing before ordering. Match the lead colours to the original motor when connecting to the arm's ESC, and confirm spin direction with the props off before flying.
